Mounting Bracket for AZ mini Driver

Request Information

Mounting Bracket for AZ mini Driver

This is a mounting bracket that allows you to attach an AZ Series mini driver (excluding AZD-KR2D) to the side of an AZ Series connector type motor. The driver can be installed near the AZ Series motor to save wiring and space, or it can be installed in the style of an integrated motor/driver.

Driver compatible with DC input type AZ Series Connector type motors only

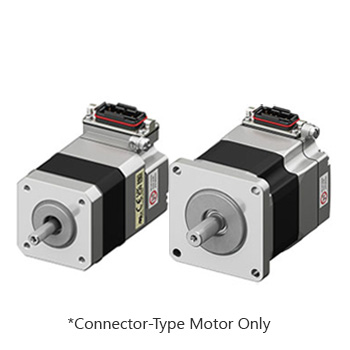

Use with 42mm or 60mm, connector type round shaft or geared type AZ series motors
*Excludes FC type right angle geared type
0.2m connection cable recommended*

Product Lineup
Product Features
Drivers & Accessories
Downloads & Reference

Product Lineup

Mounting Brackets	Motor Types	Frame Size (mm)
MAFP06W-4 42 mm Mounting Bracket for AZ mini Driver	AZ Motors Connector Type	42
MAFP06W-6 60 mm Mounting Bracket for AZ mini Driver	60
CCM002Z1EBF AZ mini Driver Connection Cable* (0.2m)	-

Mounting Brackets

Motor Types

Frame Size (mm)

MAFP06W-4
42 mm Mounting Bracket for AZ mini Driver

AZ Motors Connector Type

MAFP06W-6
60 mm Mounting Bracket for AZ mini Driver

CCM002Z1EBF
AZ mini Driver Connection Cable*
(0.2m)

Install mini Driver Directly on Motor

Install driver directly on motor to save wiring and space.

mini driver bracket

Easy Installation

The mounting bracket can be used by simply clamping it onto the motor part and tightening the screws at two points.

mounting bracket az mini driver install

Clean and Easy Wiring with One Cable Length: 0.2 m and Longer

Wiring between the driver and motor can be performed easily with a single connection cable (length 0.2m or more), making cable routing easier while saving space.
bending radius connection cable

AZ Series mini Driver Network Compatible

*Excluding RS-485 communication type AZD-KR2D

The AZ Series mini Driver works with a variety of αSTEP AZ Series, DC input products. This driver can be controlled by using EtherCAT drive profile, be daisy chained to maximize design and space, and improve installation time. The mini Driver is also designed to be close to the motor, making it ideal for Robotic type applications. The elimination of switches and I/O connectors allows for a compact and lightweight design. The mini Driver utilizes the MEXE02 Support Software, which is available for free download.

AZ Series Stepper Motors

The AZ Series stepper motor with DC input offers closed loop control, substantially reduces heat generation from the motor and by incorporating the newly developed Mechanical Absolute Encoder, absolute-type positioning is available, without battery back-up or external sensors to buy. Requires αSTEP AZ Series Driver.
