AC Centrifugal Fans / Blowers - MB Series S Type

The MB Series S Type AC input centrifugal fans & blowers provide large static pressure and can produce directional air flow ideal for cooling, drying or forcing air through duct work. Available in 2 frame sizes 3.94 in. (100 mm) and 4.72 in. (120 mm) with a maximum air flow of 184 CFM (5.2 m³/min) and a maximum static pressure of 1.81 inH₂O (450 Pa).

Provides High Static Pressure and Directional Air Flow
Single-Phase 100/110/115 VAC, Single-Phase 220/230 VAC or Three-Phase 220/230 VAC
Supports Intake Air Temperatures of -10°C to +90°C (14°F to 194°F)
Air Flow Can be Adjusted with a Damper (Sold Separately)

Product Lineup
Product Features
Accessories
System
Downloads & Reference

Centrifugal Blower Lineup

Impeller Diameter	Power Supply	Max Air Flow		Max Static Pressure
3.94 in. (100 mm)	Single-Phase 110/115 VAC	88.3 CFM	2.5 m³/min	1.29 inH₂O	320 Pa
	Single-Phase 220/230 VAC
	Three-Phase 220/230 VAC
4.72 in. (120 mm)	Single-Phase 110/115 VAC	184 CFM	5.2 m³/min	1.81 inH₂O	450 Pa
	Single-Phase 220/230 VAC
	Three-Phase 220/230 VAC

Search by Specification

MB Series S Type AC Centrifugal Fans / Blowers

Centrifugal Fans / Blowers

Centrifugal blowers move air by means of the centrifugal force generated by rotating a cylindrical runner on which blades have been arranged. Centrifugal blowers have a small outlet, which concentrates air in a single direction and are therefore suitable for local cooling. They also create large static pressure, making them optimal for cooling equipment through which air cannot flow easily and for airflow through ducts.

Centrifugal Fan / Blower

Cools Heated and Formed Workpieces as Quick as Possible

Centrifugal Fan / Blower Cooling

The high air velocity of the MB Series allows for high-speed cooling of heated and formed work pieces.

When cooling a 300°C iron plate (200 mm x 200 mm x 10 mm) to 100°C

MB Series S Type cooling time and air velocity comparison

Air is Drawn Up Through the Ducts

(Supports Intake Air Temperatures of -10°C to +90°C)

The MB Series' special design for use with ducts improves the ability to install with ducts.

easy duct installation

Ducts can be installed directly using the step

Duct joints (sold separately) connect duct and exhaust

Blows Liquids and Powders Off without Direct Contact

Centrifugal Fan / Blower Blows Liquid and Powder without Direct Contact

The air flow directionality of the MB Series can be used to blow liquids and powders. No need for humans or robots to touch the work piece.

Manual airflow adjustment with control damper

Work Piece Alignment is Maintained During Transport

MB Series S-Type suction maintains work piece alignment

The suction power of the MB Series is useful in preventing lightweight or thin work pieces from scattering or becoming misaligned.

Risk of process errors or loss. Reordering improves in-proocess defects

Installation Methods

The blower can be installed according to your needs using the mounting holes and mounting brackets. Accessories are also available to make installation convenient.

MB Series S-Type installation methods

Air Flow Adjustment

Air flow can be adjusted manually by using an air flow adjustment damper (sold separately).

MB Series S-Type air flow adjustment

Thermostat

Thermostats automatically perform ON/OFF fan control in accordance with the temperature fluctuation inside the equipment. It helps improve the equipment's "environmental" performance relative to energy savings, noise reduction, etc.

Type	Item
Centigrade (°C)	AM2-XA1

Mounting Pedestals

Mounting pedestals are used by assembling the mounting holes on the motor side. Capacitors can be fixed inside the mounting base, which helps to save space.

Fan Size	Model
3.94 in. (100 mm)	PAS12
4.72 in. (120 mm)	PAS12

Finger Guards

Finger guards prevent fingers or foreign objects from entering the fan. Finger guards are mounted to the fan frame using bolts.

Fan Size	Finger Guard
3.94 in. (100 mm)	FGB10
4.72 in. (120 mm)	FGB12

Air Flow Adjustment Damper

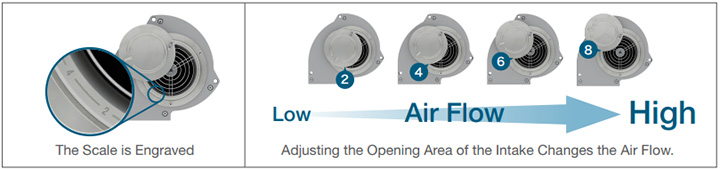

The airflow adjustment damper is peripheral equipment that can be attached to the intake to allow for easy manual adjustment of the air flow. A numerical scale is engraved on the damper. This can be used as a marker when adjusting the air flow.

Fan Size	Finger Guard
3.94 in. (100 mm)	DMP10
4.72 in. (120 mm)	DMP12

Filters

When using a fan to cool machinery, dust may accumulate inside the machinery after long periods of operation. Depending on the parts involved, this could cause a malfunction. These filters prevent dust from entering the device, keeping the air inside the machinery dust free.
